RTS flexible solutions for the communication of the Beijing winter games - and beyond.

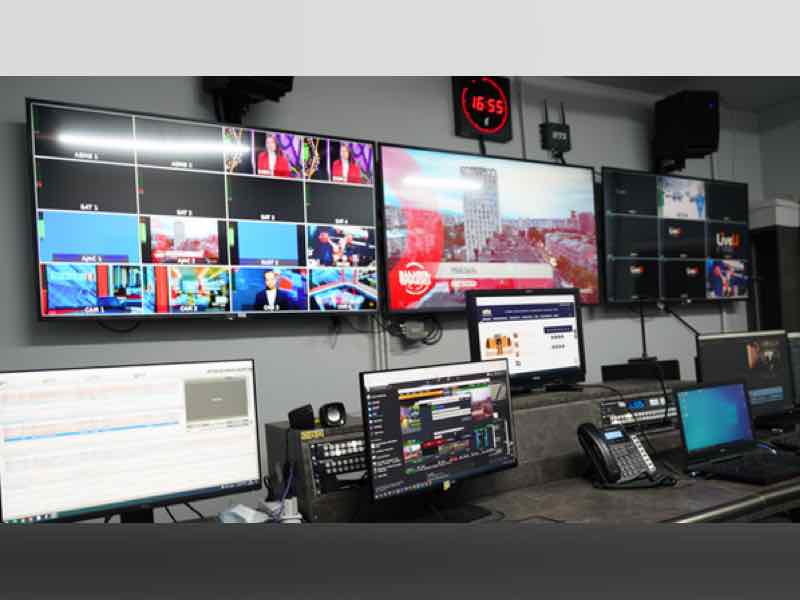

RTSodinBeijin GBDistributed in Italy by CVE Communication Video Engineering, RTS Intercom Systems is part of the Bosch Communications Systems family of brands (Bosch, Dynacord, Electro Voice, RTS and Telex) and offers the world's most complete portfolio of professional audio and communication solutions.

Dutch RTS rental partner Broadcast Rental BV supported Dutch short track speed skating television broadcast during the Beijing Winter Games.

The communications center was managed by an ODIN digital matrix of RTS.

With a Dante-enabled commentary station, multiple monitoring units, and integration with their video matrix, the team was able to perform IFB (talent reporting) and listening functions seamlessly.

The DKP-4016 desktop panels were used to ensure communication between on-site technicians at the stadium and the remote editor.

A backup area was set up at the Broadcast Rental base in Hilversum to take over the MCR in Beijing.

With a KP-4016 and a KP-5032 connected via RVON VoiP they were able to connect directly to the mainframe and have everything available, as if they were on site.



ODIN

ODIN Digital Intercom is a highly scalable 1RU intercom system.

Born to guarantee maximum safety and equipped with redundant power supplies, it features a highly energy efficient design: less than 50 W of consumption.

As the demand for capacity evolves, a single ODIN can grow from 16 ports to a maximum of 128 ports.

Up to eight ODIN frames can be interconnected via optical inter-frame links creating a single matrix with up to 1024 ports.

The total number of licensed ports can be freely assigned to any type of hardware port supported by the unit.

The front panel, which supports the most common configuration tasks, has been designed to incorporate a user interface that operates as an alternative to the AZedit matrix control software.

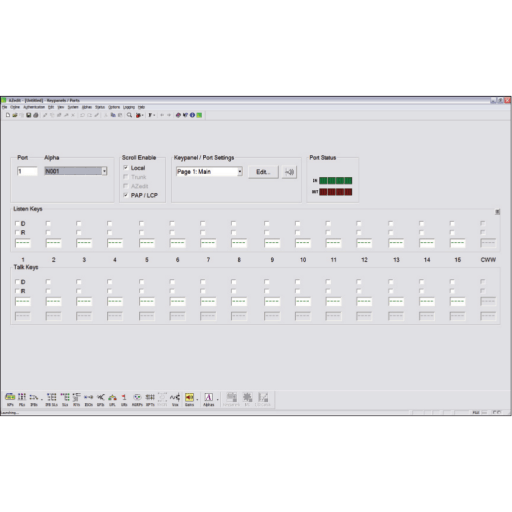

AzEditAZedit

The configuration software is comprehensive, Windows-based, and provides online and offline configuration capabilities.

It allows to manage multiple systems, assign and reassign users to different ports, and dynamically add hardware to the system configuration without rewiring or taking the system offline.

It allows to load preset configuration files, at any time and without interruption.

It is very useful as a monitoring tool to observe the status of functions, such as gain settings and crosspoints, activated panel keys, and other aspects of the system.

Thanks to the MCII-E ADAM master controller it is possible to set-up the remote system and on different sessions.

The connection section allows to operate with AIO, RVON, OMNEO and TW (two-wire), ODIN, and legacy RTS key panels. OMNEO is standard on RJ-45 connectors or optional fiber optic SFP connectors.



32VoIP RVON devices

The RTS Voice Over Network (RVON) series allows full integration of the intercom system into the existing data network.

RVON is a way to transmit encoded audio over the internet, without the need for a dedicated infrastructure.

It also allows to create an independent network for RVON equipment.

RTS devices are fully IP-compatible with current VoIP standards.

All RVON series devices can be monitored via SNMP.

They support auxiliary data control for use with RTS Intelligent Trunking over IP for local-to-worldwide connectivity.



OMNEO Open multimedia network standard

The new KP series is future-proof, as is the communication it makes possible.
Enviable flexibility includes automatic hardware recognition, as well as OMNEO technology, for full backward compatibility and easy scalability.

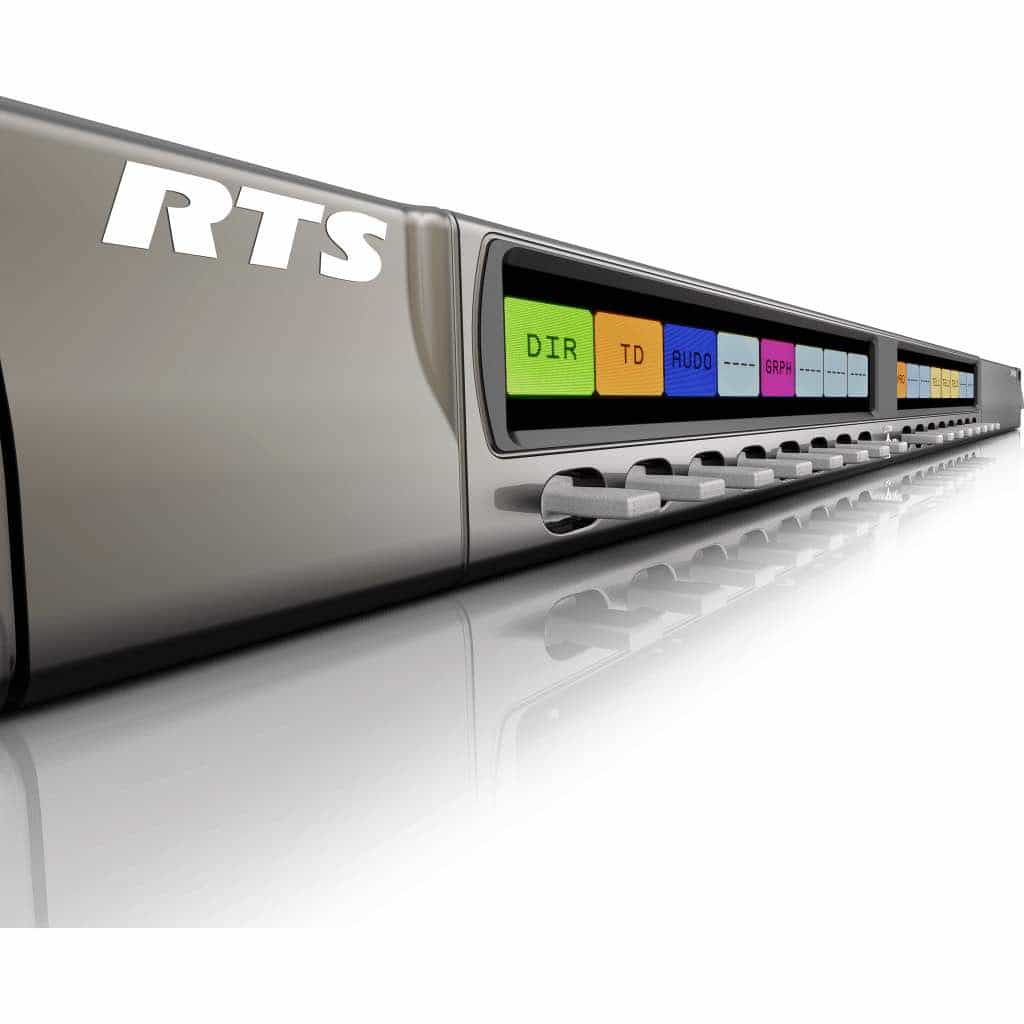

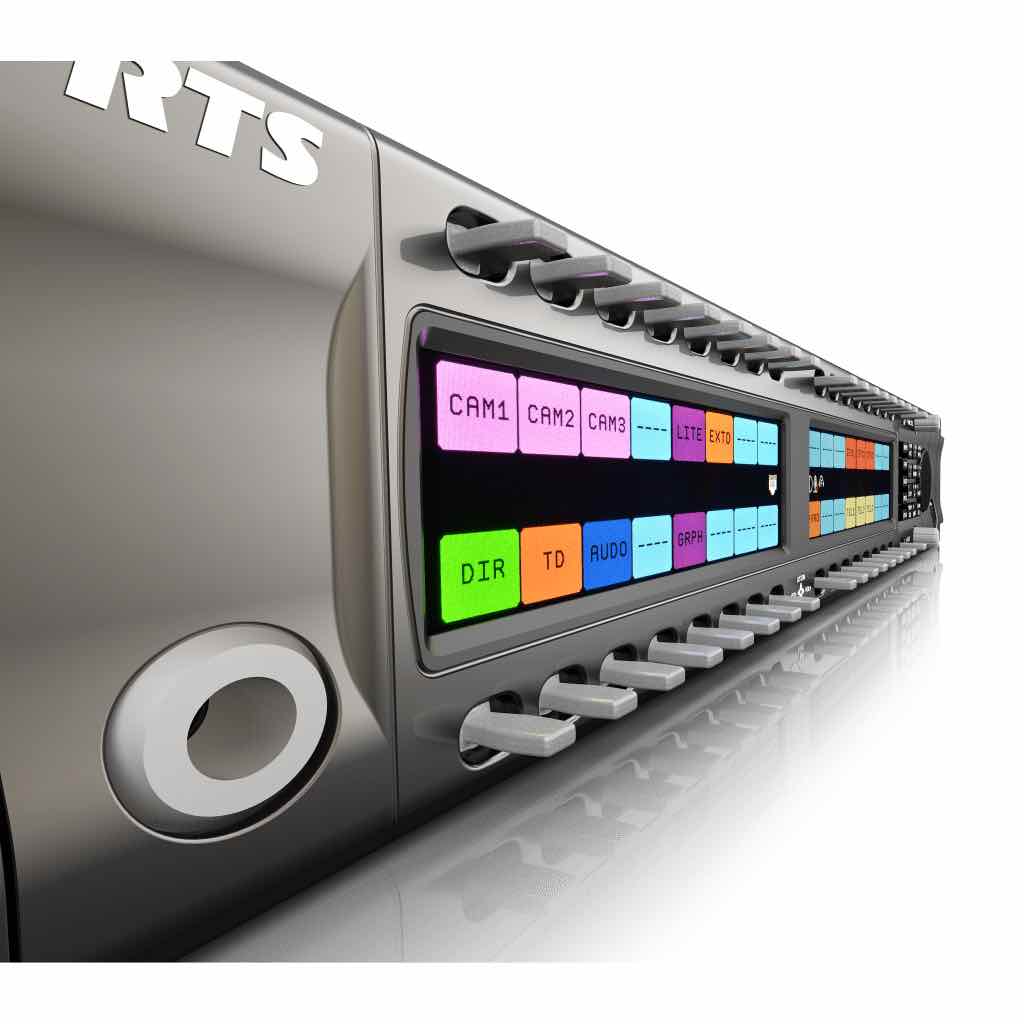

16Expansion unit EKP-4016 1RU, KP-5032 2RU



The new family of 16- and 32-key expansion keyboards features two echo cancellation modes, as well as fast AD / DA conversion that ensures extremely low latency and reduces noise, echo, delay and other possible malfunctions found in previous technologies.

Full IP connectivity and TCP-IP Layer 2 and 3 compatibility are guaranteed.

The new design and improved user interface allow for easier understanding and better operation.

The software allows simple and intuitive menu navigation, with improved access to the most commonly used functions.



INFO: https://www.cve-italy.com
